AC power supply
Forwarding performance: 51Mpps
Switching Capacity: 336Gbit/s
Customer Service: (+86) 188 5531 8266
Customer Service: (+86) 188 5531 8266

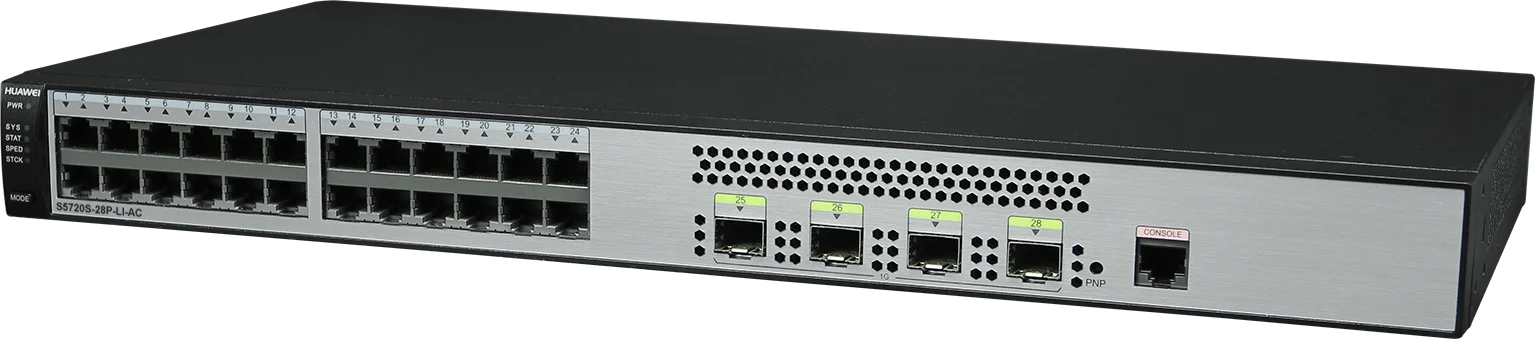

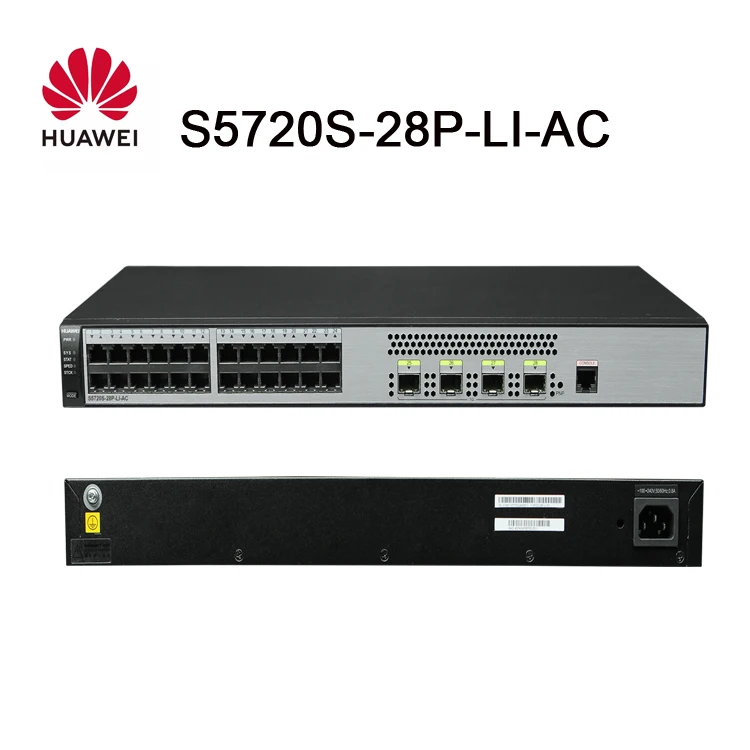

Huawei S5720S-28P-LI-AC network switch S5720S-LI Series Switches
The S5720S-LI is an energy-saving gigabit Ethernet switch that provides flexible GE access po
|
1.Twenty-four 10/100/1000BASE-T ports
|
2.Four 1000BASE-X ports
Applicable modules:
* GE optical module
* GE-CWDM optical module * GE-DWDM optical module * GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s) * Stack optical module (only used for stack connection) * 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables (only used for stack connection) * 3 m and 10 m AOC cables (only used for stack connection) * 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, supported in V200R011C10 and later versions) * GPON optical module (applicable in V200R012C00 and later versions) |
|
3.One PNP button
|
4.One console port
|
|
5.Ground screw
|
6.Jack for AC power cable locking strap
|
|
7.AC socket
|
|
|
Product Model
|
S5720S-12TP-LI-AC
S5720S-12TP-PWR-LI-AC |
S5720S-28P-LI-AC
S5720S-28P-PWR-LI-AC S5720S-28TP-PWR-LI-ACL |
S5720S-28X-LI-AC
S5720S-28X-PWR-LI-AC |
S5720S-28X-LI-24S-AC
|
S5720S-52P-LI-AC
S5720S-52P-PWR-LI-AC |
S5720S-52X-LI-AC
S5720S-52X-PWR-LI-AC |
|
Switching Capacity
|
336 Gbit/s
|
|||||
|
Forwarding Performance
|
22.5 Mpps
|
P series: 51 Mpps
TP model: 46.5 Mpps |
108 Mpps
|
108 Mpps
|
87 Mpps
|
144 Mpps
|
|
Fixed Ports
|
8 x 10/100/1,000 Base-T, 4 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP
|
P series: 24 x 10/100/1,000 Base-T, 4 x Gig SFP
TP modle: 24 x 10/100/1,000 Base-T, 4 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP |
24 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+
|
24 x Gig SFP, 8 of which are dual-purpose 10/100/1,000 Base-T or SFP, 4 x 10 Gig SFP+
|
48 x 10/100/1,000 Base-T, 4 x Gig SFP
|
48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+
|
|
MAC Address Table
|
8k MAC address entries
MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting |
|||||
|
VLAN Features
|
4,094 VLANs
Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
|||||
|
IP Routing
|
Static route, RIP, RIPng
|
|||||
|
Interoperability
|
VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) |
|||||
|
SVF
|
Plug-and-play SVF client
Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running |
|||||
